Description
MPO/MTP® -0.9mm breakout

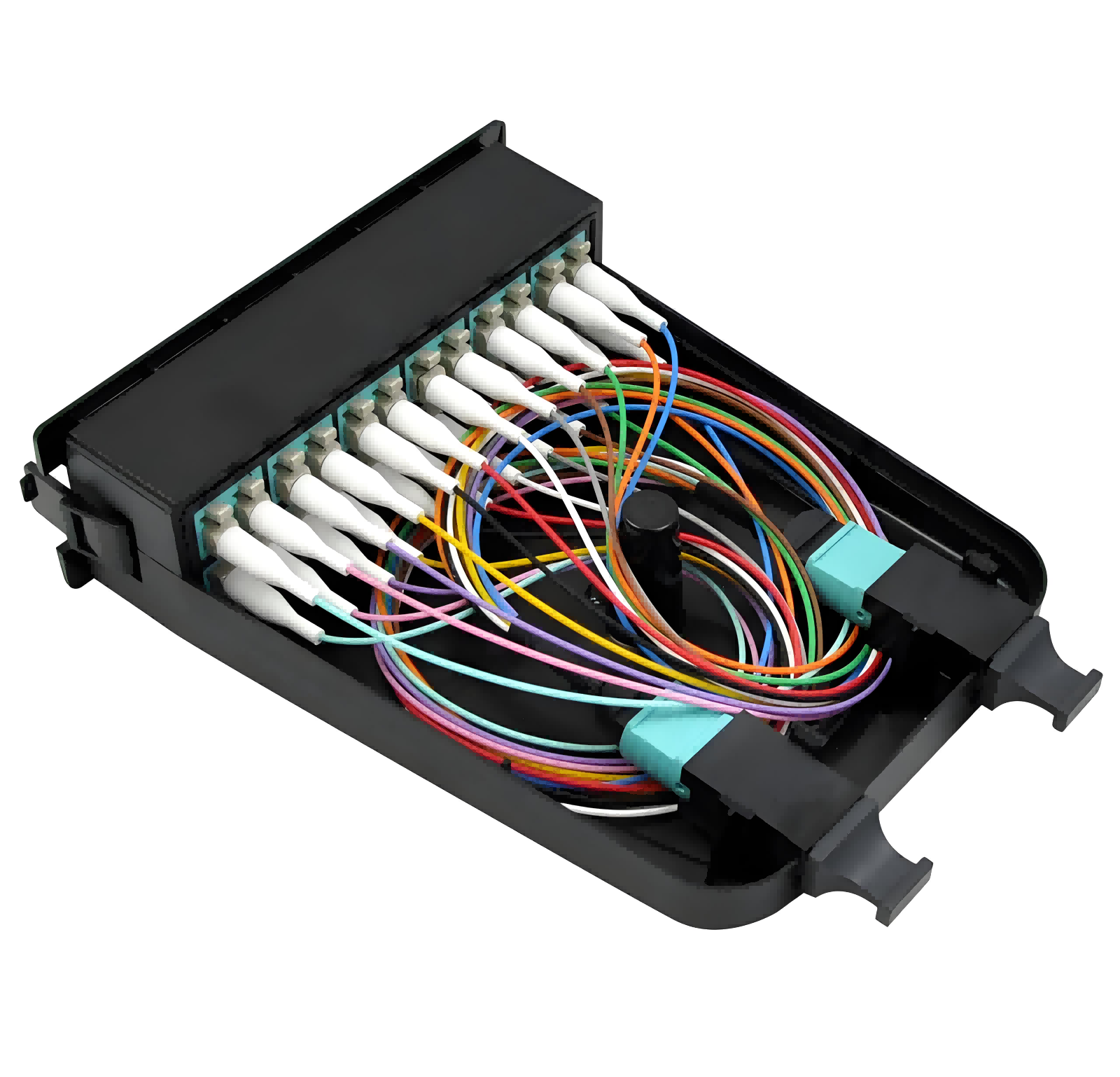

MPO/MTP® Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP® connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP® Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types. Vsunlight offers premium Hydra cables, ensuring superior performance and reliability for all your advanced connectivity needs.
PRODUCT PARAMETERS
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
|
|
| MTP® /MPO Connector with Optimal 0.35dB Low IL | SM/OM3/OM4/OM5 LC APC/ UPC | MPO/MTP® cassette modules |
Fiber count
6 fibers | 8 fibers | 12 fibers | 24 fibers | |
MPO/MTP -0.9mm breakout |  |
|
|
|
Fiber Type
 |  |
|  |
| SM(G652D/ G657A1/ G657A2/ G657B3) | SM(Low Loss with yellow sheath) | OM3/OM4(With aqua sheath) | OM4(With violet or pink sheath) |
Connector Option
Male / Female
connector housing
Breakout length
