D-OADM2x2-Cxx-Cyy-4C; DWDM 2-way OADM filter

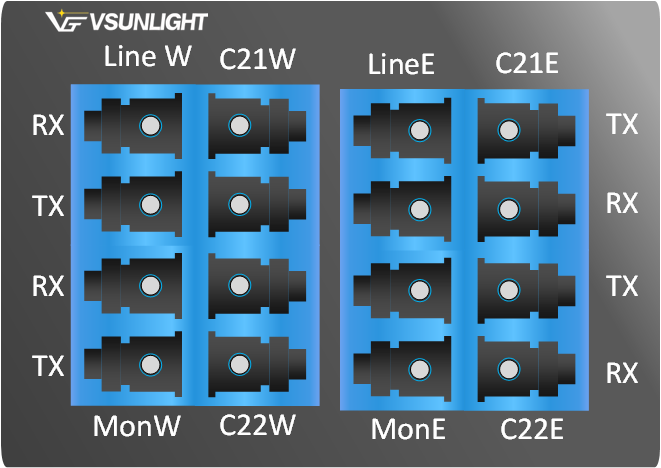

The D-OADM2x2-Cxx-Cyy-4C is a two-sided 2ch DWDM add/drop filter. The filter has four add/drop ports, one group for east and one for west direction.
The D-OADM2x2-Cxx-Cyy-4C filters are part of a series of filters where the channel passband is wide enough toallow 400G 16QAM signals to be add/dropped by the filter,Channels outside the add/drop channel bands of the D-OADM2x2-Cxx-Cyy-4C filters are glassed through the filter. Note that this intrinsic pass-through bandwidth is from 1460-1620nm, i.e. more narrow than the other filters in the 400G capable filter family.Channels outside the add/drop channel bands areglassed through the filter. There are two monitor ports (Mon)that drop about 1% of the transmitted and received signal from the Line ports.
The table below lists the provided variants：
ORDERING CODE | DWDM CHANNELS |
D-OADM2x2-C21-C22 | 192.1 to 192.2 THz |
D-OADM2x2-C23-C24 | 192.3 to 192.4 THz |
D-OADM2x2-C25-C26 | 192.5 to 192.6 THz |
D-OADM2x2-C27-C28 | 192.7 to 192.8 THz |
D-OADM2x2-C29-C30 | 192.9 to 193.0 THz |
D-OADM2x2-C31-C32 | 193.1 to 193.2 THz |
D-OADM2x2-C33-C34 | 193.3 to 193.4 THz |
D-OADM2x2-C35-C36 | 193.5 to 193.6 THz |
D-OADM2x2-C37-C38 | 193.7 to 193.8 THz |
D-OADM2x4-C39-C40 | 193.9 to 194.0 THz |
Note that the filters cover 20 out of the 40 channels. This is an initial restriction to limit the number of filter variants.
PARAMETER | D-OADM2X4-Cxx-Cyy | D-OADM2X4-Cxx-Cyy-4c |
Link loss, Ch Rx Þ Line Tx Þ Line Rx Þ Ch Tx | £ 2.6dB | £ 4.5dB |
Insertion loss, Ch Rx Þ Line Tx | £ 1.4dB | £ 2.8dB |
Pass-through loss, Ext Rx Þ Line Tx | £ 2.4dB | £ 2.0dB |
Passband Ext Û Line | 1460nm to 1620nm |
